IEC 62196 EV Connector Testing Equipment Withdrawal Force Latching Verification

Brand Name : Sinuo

Model Number : SN1013B

Certification : Calibration Certificate (Cost Additional)

Place of Origin : China

MOQ : 1

Payment Terms : T/T

Delivery Time : 15 days

Price : Customized

Supply Ability : 30 Sets / Month

Packaging Details : Plywood Case

Applied Standard : IEC 62196-1 Ed.4 CDV 2020

Applied Clauses : Clause 16.16

Withdrawal Force weight : 1kg

Insertion Force Weight : 9.2kg

Insertion Auxiliary Weight : 0.8kg

Equipment Test plugs : Customized

Drop Height Limit : 50MM

Warranty Term : One year

Contact Now





IEC 62196 Electric Vehicle Withdrawal Force And Latching Verification Test Equipment



Complied Standards & Clauses



IEC 62196-1:2020 clause 16.16.



Equipment Overview

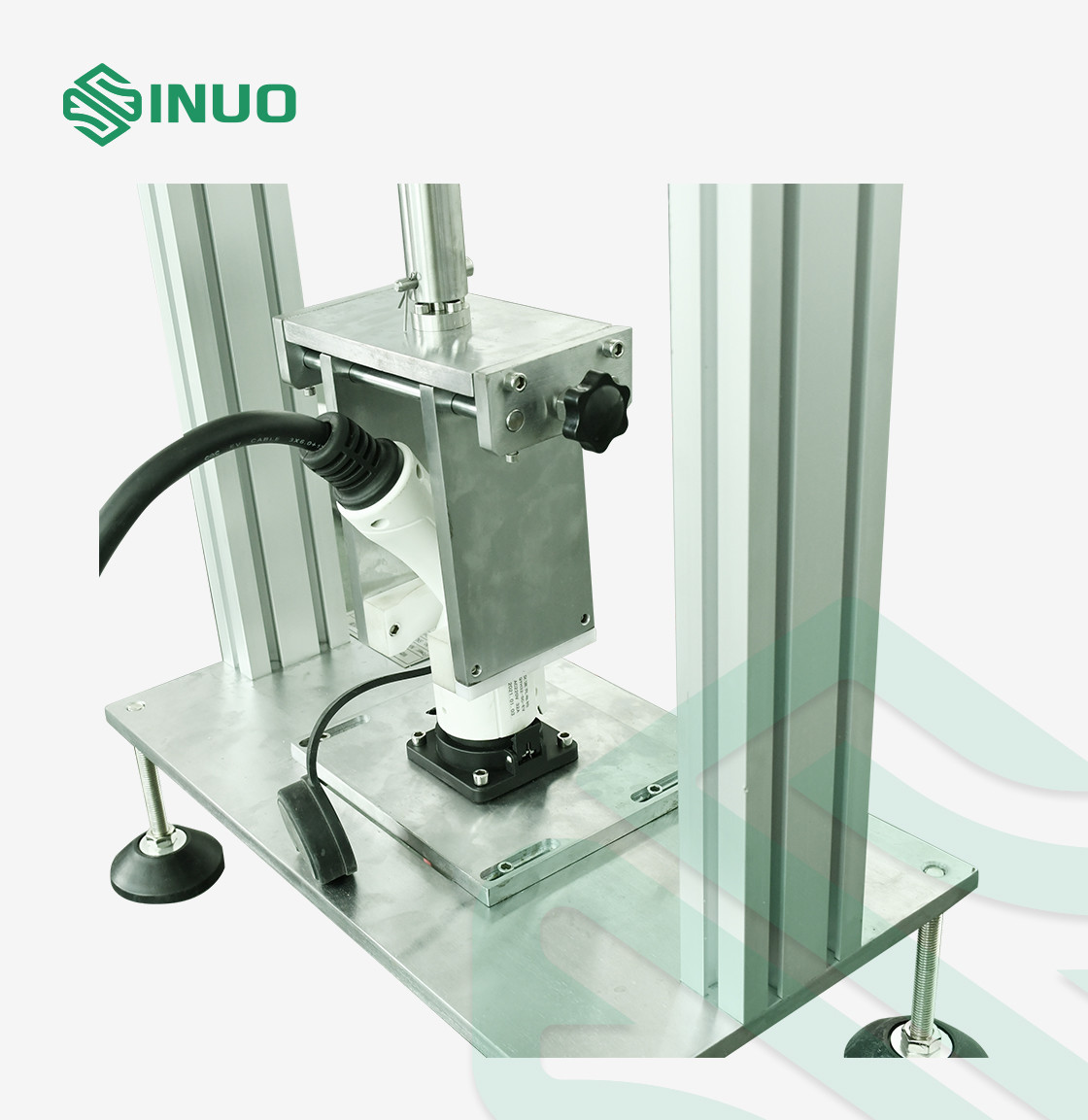

This withdrawal force test apparatus is required by IEC 62196-1Ed.4CDV 2020 clause 16.16.

Test principle: The fixed accessory (the socket-outlet or vehicle inlet) is mounted such that the mating accessory moves vertically downward into it during the first stage of insertion. A principal weight of 9,2 kg is suitably placed on the mating accessory. If the moving accessory does not enter the fixed accessory to the position required, a supplementary weight of 0,8 kg is allowed to fall from a height of 5 cm onto the principal weight. The moving accessory shall then enter the fixed accessory to the position required to engage the contacts properly.



Technical Parameters



Applied Standards IEC 62196-1 Ed.4 CDV 2020
Applied Clauses Clause 16.16
Withdrawal Force weight 1kg
Insertion Force Weight 9.2kg
Insertion Auxiliary Weight 0.8kg
Equipment Test plugs Customized

A. Insertion force test:

1. A fixed insertion force device for socket or appliance input socket

2. Force weight kit: 9.2kg, auxiliary weight 0.8kg

3. Drop height limit of auxiliary weight: 50mm

4. 2kg weight

B. Withdrawal force test:

1. Shared the mechanical part of SN1013, based on IEC 62196-1 :2020 Figure 13

2. Shared the test plugs for SN1013

3. Counterweight, make the lifting accessories (gauge + hook + weight) to be 9kg, and the supplemental weight is 1kg

4. 1kg weight


Details:

IEC 62196 EV Connector Testing Equipment Withdrawal Force Latching Verification


Product Tags:

Withdrawal Force EV Connector Testing Equipment



IEC 62196-1 EV Connector Testing Equipment



EV Withdrawal Force Verification Test Equipment
