Large Package Drop Test Machine Zero Height Carton Drop Tester for Packaging Testing

Brand Name : Sinuo

Model Number : SN1216

Certification : Calibration Certificate (Cost Additional)

Place of Origin : China

MOQ : 1

Payment Terms : T/T

Supply Ability : 10 Sets Per Month

Delivery Time : 30 Days

Packaging Details : Export packing

Drop height : 0—1000mm

Drive mode : Servo motor drive

Equipment weight : About 1000kg

Equipment dimensions : About 1800×2000×1900mm

Maximum weight of test piece : 0—200Kg

Test piece lifting speed : <30 s/m

Maximum specimen size : 1600×800×800mm

Support arm size : 700×800×40mm

Contact Now




Large Package Drop Test Machine Zero Height Carton Drop Tester for Packaging Testing



Complied Standards & Clauses




Complied Standard: it is required by ISO 5151: 2010, SNI ISO 5151: 2015, SNI 19-6713:2002, SNI 8560-1:2018 ISO 16358-1:2013, IEC 60065, SNI 04-6253-2003, etc.



Product Overview

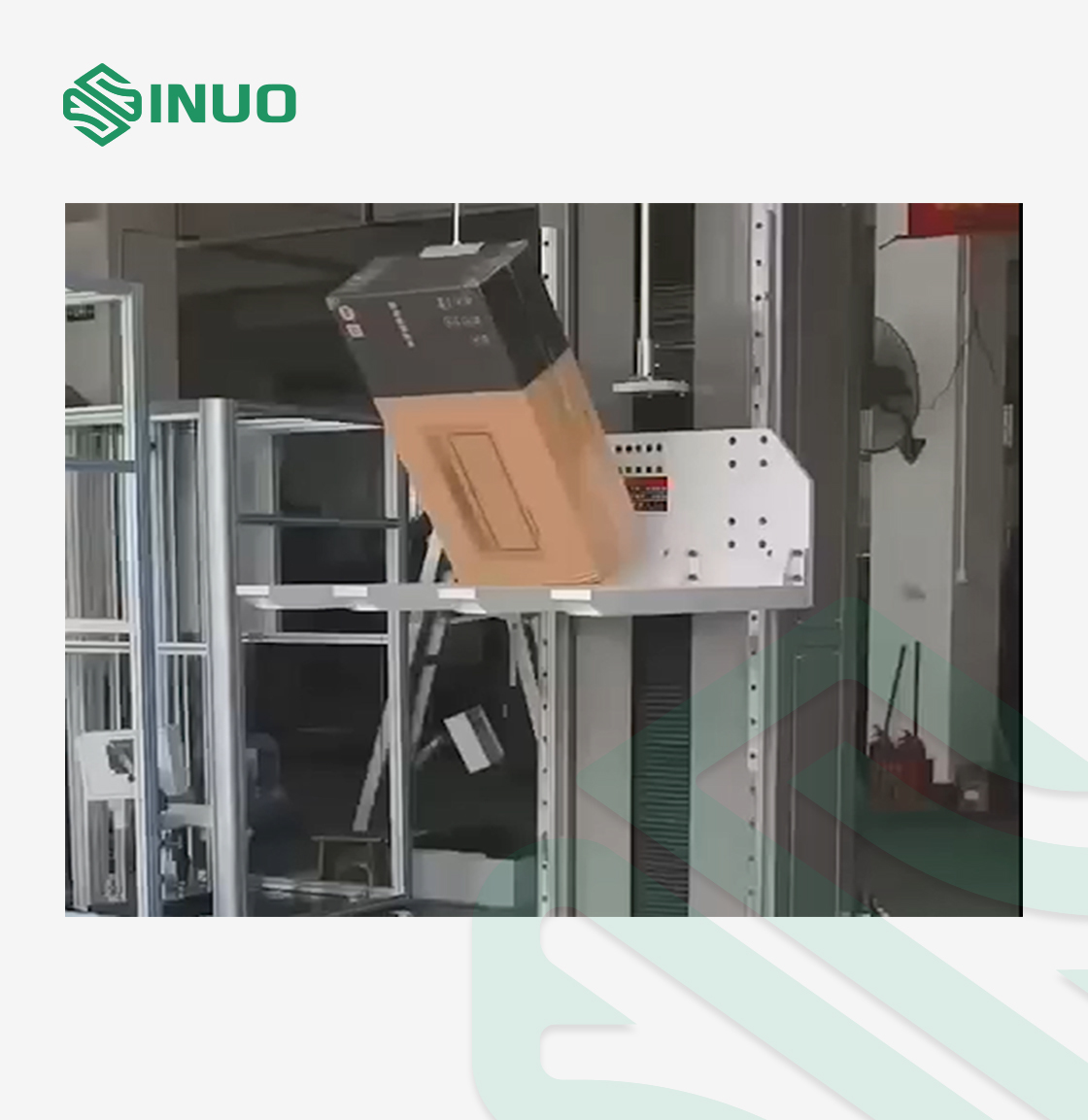

It is used to assess the degree of impact of drops on packages during actual transportation, loading and unloading, and to evaluate the impact strength of the packaging during transportation and the rationality of the packaging design. And this drop test machine is mainly used for drop testing of larger packaging. The machine uses an "E"-shaped fork that can move downward quickly as a specimen holder. The test product is placed and balanced according to the test requirements (face, edge, and angle testing). During the test, the support arm moves downward at high speed, and the test product falls to the bottom plate glue with the "E"-shaped fork. Under the action of the high-efficiency shock absorber, it is embedded flat on the bottom plate. Theoretically, the drop test machine can perform drop tests from zero height range. The drop height is set through the LCD controller and the drop test is automatically performed according to the set height.



Technical Parameters




Maximum weight of test piece 0—200Kg
Drop height 0—1000mm
Maximum specimen size 1600×800×800mm



Impact Base Plate Specifications

2200×2100×120mm (W*D*H)

Combined type (total thickness 120mm): solid steel plate 20mm thick and 100mm thick heavy-duty channel steel welded

Test piece lifting speed <30 s/m



Support arm size

700×800×40mm (composed of 4 PCS lightweight aluminum alloy forks to reduce the impact energy of falling)
Corbel structure Aluminum alloy material
Testing Face, edge, angle
Drive mode Servo motor drive
Protective device There are induction protection devices on the top and bottom
Drop height PLC touch screen programming settings
Transmission mode Taiwan imported linear slider and hardened guide rod
Acceleration device Spring type
Falling method Pneumatic
Equipment weight About 1000kg
Equipment dimensions About 1800×2000×1900mm
Working power supply 220V/50HZ
Used power 3KW
Used air source ≥6kg (prepared by customer)


Details




Large Package Drop Test Machine Zero Height Carton Drop Tester for Packaging TestingLarge Package Drop Test Machine Zero Height Carton Drop Tester for Packaging Testing
